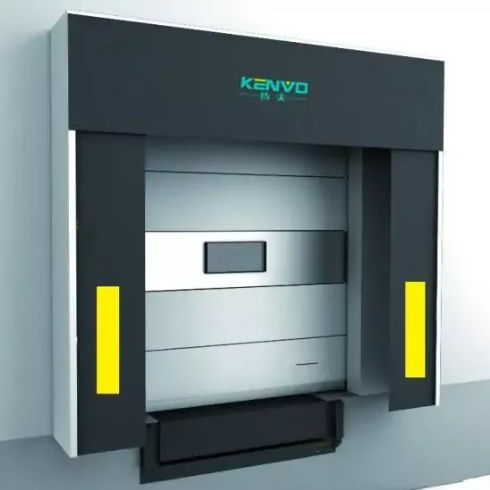

Retractable dock shelter

loadingthermally-insulated

Dock Shelter & Seal Used for seal between dock and truck containers. It can protect goods and avoid exterior air and dust entering the room during the loading and unloading process. We develop three different models of dock shelter. They are fit for different situation. You can check below details and make a choice. Type No.1. Retractable Dock Shelter or Seal (Basic model, most widely used) Fit for loading docks working with different types of trucks. It can fit containers of various sizes. It is retractable design. Two parallel steel tubes form the main skeleton. When trucks touch the shelter, it will retract flexibly and join closely with trucks of different types. After trucks leave, it will recover automatically under self-weight effect. Thus, it is a good choice if your truck containers are in different sizes. Data sheet: Color：Black Fabric type：Horizontal polyester Basic material：PVC fabric Density(kg/m2)：2.7 Retractable metal frame：Aluminum alloy 1% Stress(N/mm)：8 Work temperature(℃)：-20/+80 Fireproof grade：EU Grade II QTY of fabric layers：2 Surface material：PVC fabric Thickness of front fabric(mm)：3.0 Thickness of lateral fabric(mm）:0.8mm Tear strength(N/mm)：150 Max width (M)：5 Horizontal stability：Yes Type No.2. Thermal Insulated Dock Seal (Insulated model, for uniform size truck or container)
