Absolute pressure transmitter DMP305X-TST-S (AP)
siliconpiezoresistive4-20 mA

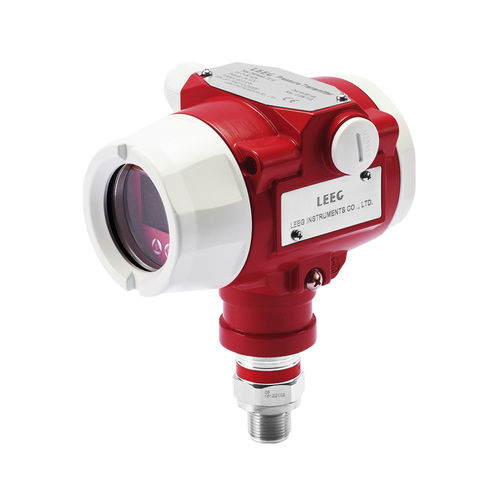

Absolute pressure transmitter - DMP305X-TST-S (AP) - Shanghai LEEG Instruments Co.,Ltd. - silicon / piezoresistive / 4-20 mA
Absolute pressure transmitter - DMP305X-TST-S (AP) - Shanghai LEEG Instruments Co.,Ltd. - silicon / piezoresistive / 4-20 mA
Absolute pressure transmitter - DMP305X-TST-S (AP) - Shanghai LEEG Instruments Co.,Ltd. - silicon / piezoresistive / 4-20 mA - image - 2
Absolute pressure transmitter - DMP305X-TST-S (AP) - Shanghai LEEG Instruments Co.,Ltd. - silicon / piezoresistive / 4-20 mA - image - 3
Absolute pressure transmitter - DMP305X-TST-S (AP) - Shanghai LEEG Instruments Co.,Ltd. - silicon / piezoresistive / 4-20 mA - image - 4
Absolute pressure transmitter - DMP305X-TST-S (AP) - Shanghai LEEG Instruments Co.,Ltd. - silicon / piezoresistive / 4-20 mA - image - 5
Absolute pressure transmitter - DMP305X-TST-S (AP) - Shanghai LEEG Instruments Co.,Ltd. - silicon / piezoresistive / 4-20 mA - image - 6
Absolute pressure transmitter - DMP305X-TST-S (AP) - Shanghai LEEG Instruments Co.,Ltd. - silicon / piezoresistive / 4-20 mA - image - 7
Add to favorites
Compare this product

Go to the Shanghai LEEG Instruments Co.,Ltd. website for more information

Characteristics

Pressure type
absolute
Technology
silicon, piezoresistive
Output
4-20 mA, HART, RS-485, Modbus, Modbus RTU
Supply voltage
24 Vdc
Mounting
threaded, panel-mount
Process connection
NPT 1/4, G 1/2, NPT 1/8
Fluid
for gas, for liquids
Material
stainless steel, titanium, aluminum
Protection level
intrinsically safe, explosion-proof, rugged, corrosion-resistant, flameproof, IP67
Applications
process, for OEM, for the petrochemical industry, for water treatment, for marine applications, for building automation, for boiler
Other characteristics
two-wire, precision, CE, fully-welded, with aluminum housing, with digital display, high-overpressure, fast response time, male, temperature-compensated, OEM, smart, low pressure, programmable, multifunction, with LCD display, custom, oil-filled, RoHS, economical, high-temperature
Pressure range

Min.: 0.4 bar
(5.8 psi)

Max.: 100 bar
(1,450.38 psi)

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 120 °C
(248 °F)

Description

Advantage • Dual diaphragm overload structure can easily cope with high overload tests. • 355° rotation display module, friendly button parameters operation function. • Accurate filling fluid technology eliminates effects of temperature and static pressure. • High strength metal electrical protection housing meets the most rigorous environmental application. • Strong transient voltage resistance to protect terminal module. Main Specification • Measuring range: 40kPa-10MPa • Output signal: 4-20mA, 4-20mA+HART, customer • Reference accuracy: ±0.15% URL, ±0.1% URL • Process connection: M20*1.5(M), G1/2(M), G1/4 (M), 1/2-14NPT(M) • Measuring medium: Liquid, gas, or steam • Approvals: CSA, ATEX, IECEx, NEPSI, RoHS, CE
