DIN rail-mounted terminal block JPTTB2.5-PEplug-inspringgrounding
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted, plug-in
- Connection
- spring
- Other characteristics
- grounding, modular
- Cross-section
2.5 mm²
(0 in²)
Description

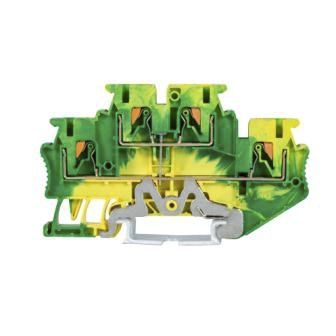

JPTTB2.5-PE Plug-in type Spring Green Yellow Connector
• Made from anti Inflaming Nylon PA 66, Brass metal.
• The Push-in connection terminal blocks are accept with different types of wires: ferrules , soft and solid conductors.
• With a single click, PT series ground modular terminal blocks can simply snap onto the DIN rail to create the PE connection.
• With combination foot which can install on the DIN Rail.
Thickness: 5.2mm
Length: 83.6mm
Height: 48.7mm
Packing: 50
Din Rail Type: NS35/7.5, NS35/1.5, NS32
