DIN rail-mounted terminal block JPTTB4-PEpush-ingroundingmodular
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted
- Connection
- push-in
- Other characteristics
- grounding, modular
- Cross-section
4 mm²
(0.01 in²)
Description

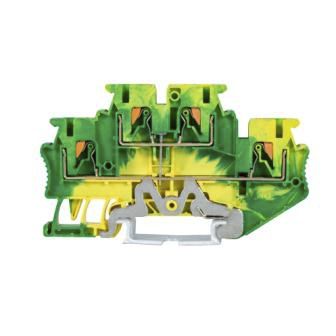

JPTTB4-PE Leipole grounding terminal block
• Made from anti Inflaming Nylon PA 66, Brass metal.
• The Push-in connection terminal blocks are accept with different types of wires: ferrules , soft and solid conductors.
• With a single click, PT series ground modular terminal blocks can simply snap onto the DIN rail to create the PE connection.
• With combination foot which can install on the DIN Rail.
Thickness: 6.2mm
Length: 83.6mm
Height: 48.7mm
Packing: 50
Din Rail Type: NS35/7.5, NS35/1.5, NS32
