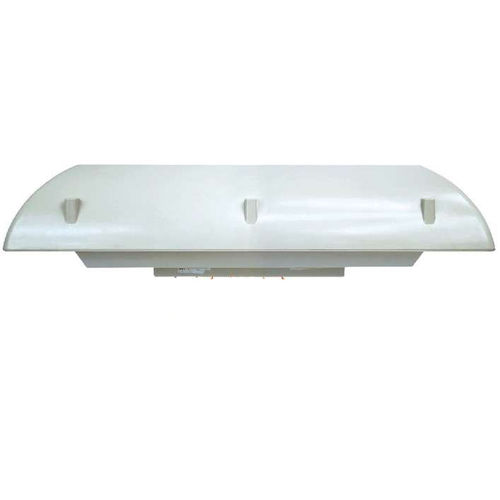

Rooftop fan F2E-DSP series
axialventilation230VAC

Rooftop fan - F2E-DSP series - Shanghai Leipold Electric Co., Ltd. - axial / ventilation / 230VAC
Rooftop fan - F2E-DSP series - Shanghai Leipold Electric Co., Ltd. - axial / ventilation / 230VAC
Add to favorites
Compare this product


Characteristics

Configuration
axial
Function
ventilation
Supply voltage
230VAC
Air flow

570 m³/h, 860 m³/h, 1,200 m³/h
(20,129.36 ft³/h, 30,370.613 ft³/h, 42,377.6 ft³/h)

Diameter

281 mm
(11.063 in)

Noise level

Max.: 74 dB

Min.: 62 dB

Description

Axial fan: Electric capacitance Power(W): 58/75, 85/90, 135/200 Noise level(dB): 62/64, 69/71, 73/74 operating temperature range:  -10°C to +55°C, -10°C to +60°C Remarks: The number of air inlet filter,size,according to the specific circumstances
