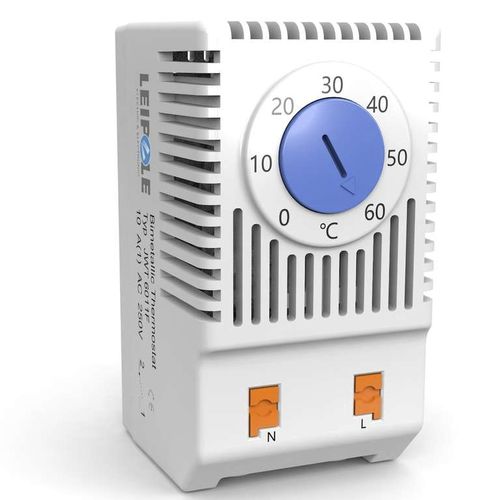

Bimetallic thermostat JSK0011Fterminal blockDIN railfor electrical cabinets
Add to favorites
Compare this product
Characteristics
- Heating technology
- bimetallic
- Electrical connection
- terminal block
- Mounting
- DIN rail
- Applications
- for electrical cabinets
- Temperature
Min.: 20 °C
(68 °F)Max.: 80 °C
(176 °F)- Switching power: current
10 A, 15 A
- Switching power : voltage
120 V, 250 V
- Process temperature
Min.: 0 °C
(32 °F)Max.: 60 °C
(140 °F)
Description
Commonly used in the monitoring filter fans,heat exchangers or a single temperature exceeds a set value, the closed circuit out signal.
JWT6011F Thermostat(normally open):commonly used in the monitoring filter fans,heat exchangers,or when the temperature exceeds the set value, the closed circuit output signal.
Model: JSK0011F
Status: JWT6011F normally open（blue）
Switching temperature tolerance: 7K（±4K）
Sensing element: Bimetaillic
Electrical connection: 2 pole 2.5mm²,0.8Nm
Installation: 35mm Din rail mounting
Terminal: UL94V0
Size: 60*33*43mm
