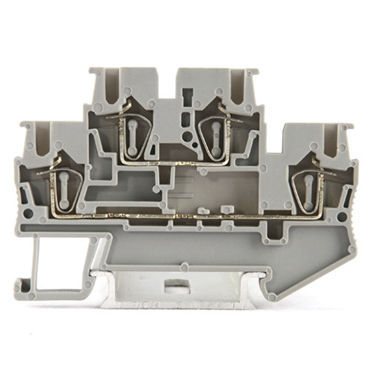

DIN rail-mounted terminal block JSTTB2.5springinsulated
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted
- Connection
- spring
- Other characteristics
- insulated
- Cross-section
Max.: 4 mm²
(0.01 in²)Min.: 0.4 mm²
(0 in²)- Current
26 A
- Nominal voltage
800 V
Description
JSTTB2.5 Sping Terminal Block
• Stainless steel Spring for high corrosion resistance
• Surface protected by a lead-free, galvanic nickel or tin plating
• Spring and screw clamp ranges share the same accessories reducing inventory by up to 50%
• Time & stock saving with plug-in insulated jumpers, cuttable and available up to 50 poles
• Good electrical conductivity
• Low temperature rise
Connection Standard: IEC60947-7-1
Width: 68mm
Height: 47.5mm
Thickness: 5.2mm
Inflammability class: V0
