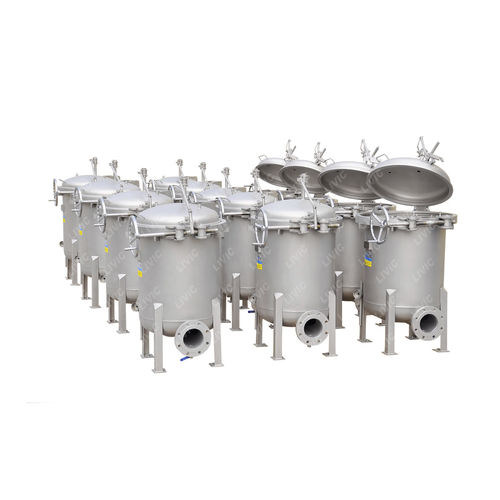

Liquid filter BFR series
multi-bagheavy-duty

Liquid filter - BFR series - Shanghai LIVIC Filtration System Co., Ltd. - multi-bag / heavy-duty
Liquid filter - BFR series - Shanghai LIVIC Filtration System Co., Ltd. - multi-bag / heavy-duty
Liquid filter - BFR series - Shanghai LIVIC Filtration System Co., Ltd. - multi-bag / heavy-duty - image - 2
Add to favorites
Compare this product


Characteristics

Designed for
liquid
Filtration element
multi-bag
Applications
heavy-duty
Operating pressure

Max.: 10 bar
(145.038 psi)

Min.: 7 bar
(101.526 psi)

Filtration size

Max.: 2,000 µm

Min.: 1 µm

Flow

Max.: 288 m³/h
(10,170.624 ft³/h)

Min.: 72 m³/h
(2,542.656 ft³/h)

Description

BFR Series Quick-Open Multi-bag filter ( BFR Filter for Short ) is particularly designed for end users caring about the operation efficience, safety and durability. It is very suitable for the filtration of high contaminant liquid, frequent filter bag change-out applications, or 24-hour continuous production which requires quick filter switching and cleaning. BFR filter is an excellent solution to greatly improve the filtration operation efficiency. It makes the filter change-out quicker and greatly reduces the labour intensity.
