Lamp LW15

LEDIP69KIP68

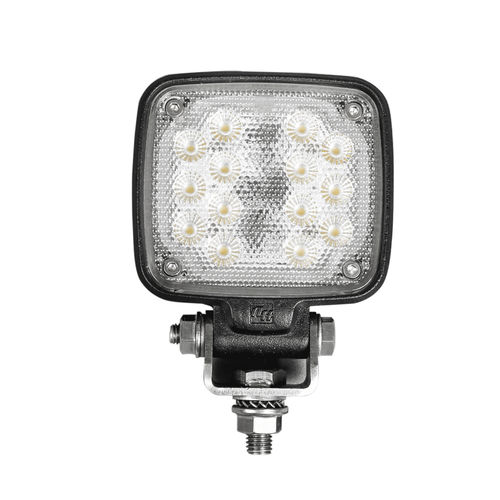

LED Work Light LW15 Features Mining vehicle lighting technology. Product use high reliable, high efficient LED light source, has the advantages of high efficient, long lifetime, energy saving,environment friendly. Integrated heat sink and housing design, has advantage of good heat emission ability, light weight, strong vibration resistant capacity. Finish use special spraying technology, anti-oxidation, anti-vibration, sealed structure, suit for salt seashore areas. Products description and applicaiton LW15 series LED work lights adopts mining vehicle lighting technology. It has long lifetime, safety operation, maintenance free by using high reliable LED light source. Product has compact and light weight design, strong anti-vibration level, and suit for the application of engineering machinery, mining machinery and heavy duty trucks. Standard: GB7000.1/GB2423/DIN40050/GB4208. Base Product name LED Work Light Product model LW15 Optics LEDs lifetime ≥50,000 h Color temperature Cold white: 5700K Warm white: 2700K Lumens Cold white: 1400(14W)/1600lm(16W)/1800lm(18W) Warm white: 950lm(14W)/1050lm(16W)/1200lm(18W) Beam angle 30° Electric Rated voltage DC9V-DC14V /DC18V-DC32V Rated power 14W, 16W, 18W EMC EN55015/CISPR 15 Lightning surge GB/T17626.2-2006±1000V Electrostatic discharge GB/T17626.5-2008±8KV Connect Lead wire/Connector Mechanical Operating temperature -40˚C ~ +85˚C IP rate IP68/IP69K Body material Aluminum alloy Mount M10 stainless steel bolt Cover material PC Anti-shock IEC60528 60G Anti-vibration IEC60528 30G IK rate IK08 Anti-corrosion ISO9227 720H / C5-M Body color Black Mount M10 stainless steel bolt
