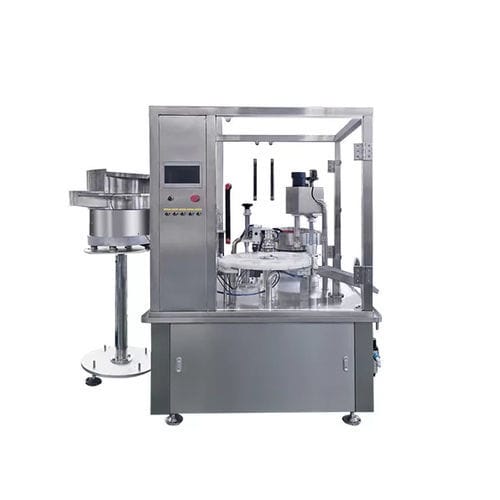

Rotary capping machine

multi-headscrew-onscrew

The pick-and-place capping machine is designed and manufactured for the caps which can not directly be fed onto the bottles *Application: mostly used for daily chemicals bottles and caps, cosmetics container capping, and pilfer-proof caps. PET, PVC, plastic, and glass. The capper is either integrated within our filling machine or stand-alone. it is equipped with 1 or 2 heads for a speed of up to 4,000 caps/hour (depending on the type of cap and bottle used and size of them) *The bottle capping machine is designed with a star wheel indexing system to control and handle flimsy bottles. In addition, the star wheel assists in keeping bottles stationary as torque are being applied. *Features: 1. To eliminate damage to caps, the pick and place capper comes with adjustable electronic torque values. 2. Bottle working on star wheels, for different sizes of bottle need changeover the star wheel 3. Stable working, mostly using the container less than 1000ml 4. Caps feeding by some systems, such as elevators, vibrators, and centrifuge plates that stock and transport the caps to the dispenser and chute. 5. Cam divider or pneumatic rail with vacuum or robot hand system for picking and placing the caps 6. Capping heads made according to the types of caps, driven by servo motor 7. Capping torque is adjustable on HMI
