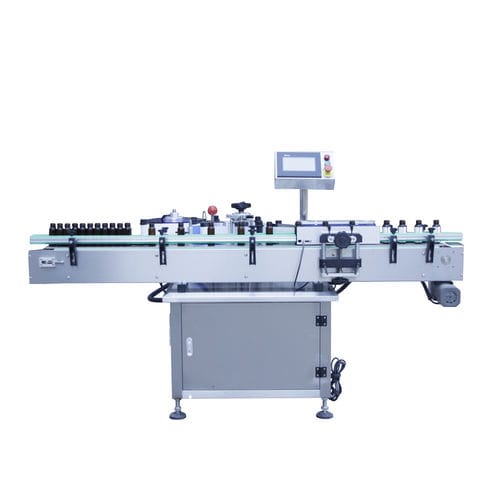

PLC-controlled labeling machine NP-RL

fully-automaticfor bottlesfor tubes

NP-RL Vertical round bottle labeling machine is a self adhesive labeling machine design for round bottle labeling with single label pasting. It is original technology from Italy, high speed labeling and stable.The whole machine frame is adapt 304 stainless steel,servo motor driven the labeling head, PLC control,frequency speed adjust.The labeler can equip with a date coder for printing date, LOT number, also bar code.The detection function is as an option, such as automatically rejection for missing label,automatic warning on missing label, automatic rejection for no date printing etc. The machine is adapted with advanced technology in the world. 1. Touch screen and PLC control 2.Low or missing label detect. 4. Synchronized speed selection 5. Servo motor drive for high accuracy and high speed 6. No bottle no labeling. Technical Parameter: Machine Size: 2000(L)×1250(W)×1650(H)mm Output Speed: 50-150pcs/min depends on label and bottle size Height Label Object: 30-200mm Bottle diameter: 20-86mm Label Height: 15-150mm Label Length: 25-200mm Pastes the sign precision:±1mm Roll inside: 76mm Roll Outside Diameter: 330mm Power Supply: 220V 0.8KW 50/60HZ 5Kg/c㎡
