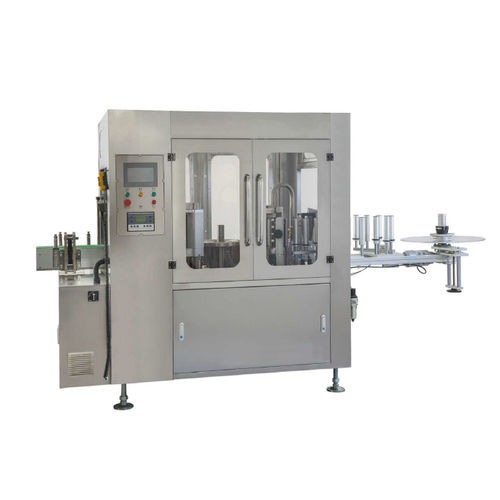

Hot-melt glue labelling machine NP-HGL

PLC-controlledfor bottlesside

Process: In feed bottle → pre-position →label cutting → gluing → labeling → label by press out → finish Features: Servo motor-driven traction trademark agencies, photoelectric color code detection and compensation structure of a trademark can be cut off to ensure that trademarks are timely, accurate, and neatly cut. biaxial screw propeller institutions bottle into the bottle so that a more stable, high-speed into the bottle so much more smoothly. Inflatable bottle of the local function is the quality of the container (grams) low, allowing users to reduce operating costs. Double disk structure to ensure that the user feed the least time to replace the membrane, so that the effective production of longer, more productive machines. specifically the constant tension of the membrane material detection and feedback control system ensures that the general membrane materials to achieve high quality labeling. Technical Parameters: Model - NP-HGL Suitable bottle volume - 500ml-2000ml Speed - 6000-8000bottle/hour Bottle shape - Round bottle Bottle diameter: - 55mm-100mm Label exact: - 2mm Applicable material of label - PAPER, PP, BOPP, OPP, PVC, PE, ETC Applicable material of bottle - PE, PET, Glass bottle, POP Can Power - 308 VOLTS, 3 PHASE, 50-60 HZ, 9 -12 KW Air consumption - 4Mpa Weight - 1500 Kg Dimension of machine - L5000 × W1800 × H2000 mm
