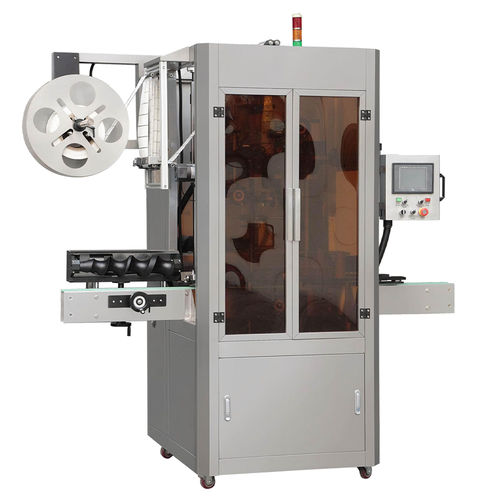

Automatic sleeving machine NP-150

for small containerscupfor bottle packs

-Driving unit: Synchronized transmission and drive by gear with one belt. The change of transmission belt will be finished quickly. Compared to the type of traditional multi layer whose change and maintain need more than six hours, its maintenance is easy and maintain is simple, so it doesn’t influence production. -Cutter head unit: The new style cutting knife droved by servo motor, with high speed, more stable and precise, shrinks perfectively. Synchronous locating device enables the tolerable error to 1mm.Unit cutter head plane design in China which applies to the container of D30mm—D130mm.   -Label feeding unit: Single material shelf with reasonable height in order to make it convenient to install label. It adopts rotary potentiometer which enable the label feeding stable and fluent and avoid the error label length, label block and other problem when label feeding servo convey the label.  -Clean down unit: Adopt with motor coordinating with double circular arc synchronous belt makes clean down plastic core-rubber-tires synchronously and ensures the label casting stably. -Bottle carrying system: Adopted with mechanical transmission to drive the positioning belt on both sides. While changing the whole bottle carrying unit, the down and up, width are all controlled by one hand wheel aiming to synchronously and swiftly adjust. Technical Parameter： Input Power - 3KW Input Voltage - ∮3,380/220VAC Production Efficiency - 100 (Bottle/min) Size of Host Machine - 2100L*900W*2000H Applicable Diameter of Bottle Body - Φ38mm—Φ120mm Applicable Length of Label - 30mm-220mm Applicable Thickness of Label - 0.03mm-0.13mm Applicable Internal Diameter of Paper Tube - (Free Adjustment)
