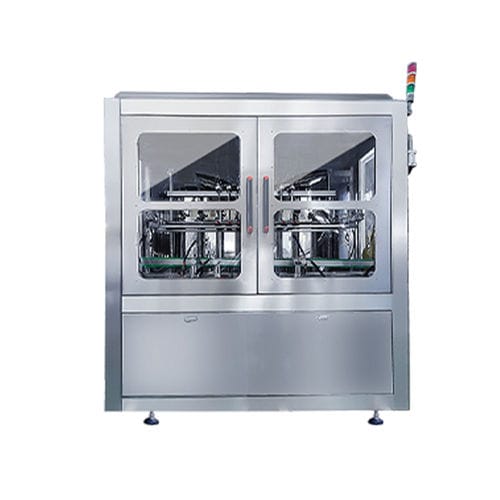

Automatic filling machine
bottlemulti-containeralcoholic beverage

automatic filling machine
automatic filling machine
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Container type
bottle, multi-container
Product applications
alcoholic beverage, for liquids, for vegetable oil
Domain
for the chemical industry
Type
piston
Number of heads
multi-head
Other characteristics
PLC-controlled, high-speed
Throughput

Max.: 200 p/h

Min.: 20 p/h

Volume

Max.: 5,000 ml
(169.1 US fl oz)

Min.: 100 ml
(3.4 US fl oz)

Description

The inline piston liquid filling machine is more flexible, and suitable for a wide range of container size range from 100ml to 5000ml. Advantages: high filling speed, high accuracy and easy adjustment for different types of containers Application: Viscous liquid to thin liquid which is non corossive the stainless steel. Commonly used in industries such as food and beverage, pharmaceuticals, and cosmetics, where precise and consistent dosing is important Feature: -Volumetric by a high quality and precision piston Multi heads piston fillers are distinquished by the rotary valve which has a large throat opening to allowthick products and products with large particulates (up to 10mm) from the supply top hopper to flowthrough unimpeded. -Liquid contact parts 304SS or 316SS depends on the liquid -With automatic cleaning system -The Filling nozzles can be shut off, anti drops -Allen Bradley, Siemens PLC control -Frequency servo control drive for filling speed, acceleration and deceleration. Parameter: Speed: 20-120bottles/min Filling range: 100-1000ml350-2500ml500-5000ml Measurement precision: +0.5% depends on the liquid Working power: electric Air pressure: 6~8kg/cm2 Air consumption: 1m3/min according to the working situation Power rate: 1.5KW to 3KW for the main servo motor Other devices power rate: less 15kw (air compressor) Net weight: 600Kg to 1000KG
