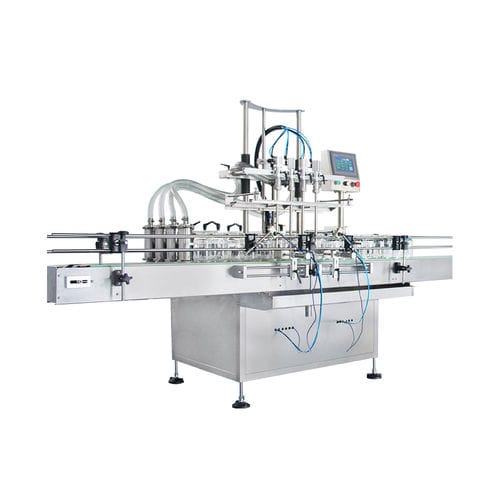

Piston filling machine NP-EVF

automaticbottlefor liquids

The NP-EVF economy automatic horizontal piston filler is equipment with 2 or 4 filling heads, the driven system can be an air cylinder or a servo motor. It was designed based on the semi-automatic pneumatic piston filling machine. The piston stroke movement is horizontal. Feature: 1- Volumetric by a high-quality piston 2- High-accuracy measurement system for different types of non-corrosive liquid 3- liquid contact parts 304SS or 316SS depends on the liquid 4- filling volume is easily adjustable and by the distance of the piston working stroke 5- The Filling nozzles can be shut off, and anti-drops 6- the filling valve can be a single direction for thin liquid and a butterfly valve for viscous products 7- the top tank is optional and can be with mixing and heating function if needed. Parameters: 1 Speed: 10-30bottles/min 2 Filling range: 100-1000ml,350-2500ml,500-5000ml 3 Measurement precision: ±0.5% depends on the liquid 4 Working power: pneumatic system 5 Air pressure: 4～6㎏/㎝² 6 Air consumption: 1m³/min according to the working situation 7 Power rate: no electricity required 8 Other devices' power rate: less 7.5kw（air compressor） 9 Net weight: 300Kg
