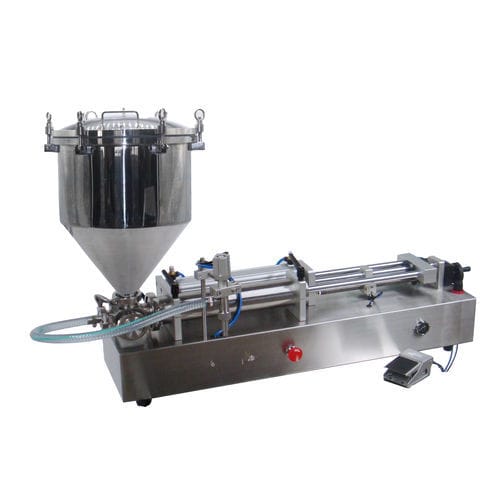

Semi-automatic filling machine

bottlefor liquidsvolumetric

Semi-automatic Pneumatic volumetric Piston Filling machine is available with Single Head or double-filling Heads. High-quality and famous brand air cylinders ensure the machine works stably and fast. Make the machine suitable for filling viscosity and liquid. This semi-auto machine has 2 working modes for operation, auto, and pedal. Feature 1. Volumetric by a high-quality piston 2. High-accuracy measurement system for different types of non-corrosive liquid 3.liquid contact parts 304SS or 316SS depends on the liquid 4. filling volume is easily adjustable, and by the distance of the piston working stroke 5. The Filling nozzles can be shut off, and anti-drops 6. the filling valve can be the single direction for thin liquid and the butterfly valve for viscous products 7. the top tank is for optional and can be with mixing and heating function if needed. 8. Pharmaceutical, GMP, FDA health standards. 9. Hard, abrasion resistant, particle release is extremely small, long service life. 10. Dense material, water absorption as low as zero; very high surface finish, minimal friction; therefore minimal residual materials. 11. Thermal expansion coefficient is small, piston clearance fits more, and filling accuracy can be achieved online cleaning and sterilization. Parameters 1.Speed:10-30bottles/min 2.Filling range:100-1000ml,350-2500ml,500-5000ml 3.Measurement precision:±0.5% depends on the liquid 4. Working power: pneumatic system 5. Air pressure:4～6㎏/㎝² 6. Air consumption:1m³/min according to the working situation 7.Power rate: no electricity required 8. Other devices power rate: less than 7.5kw（air compressor） 9.Net weight:30Kg
