Container mixer XHL series

batchfor liquidspowder

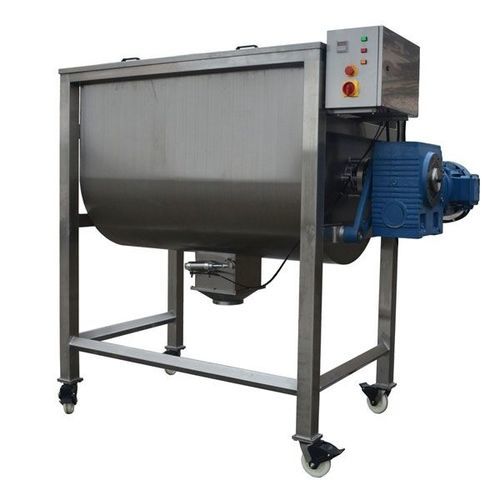

The horizontal screw belt mixer is composed of A U-shaped container, a screw belt mixing blade and a driving part. Spiral strip blades are generally made of two or three layers. The outer spiral collects materials from both sides to the center, while the inner spiral transports materials from the center to both sides to form convective mixing. The screw belt mixer has a good effect on the mixing of viscous or condensed powder particles and the mixing of liquid and paste materials added in the powder particles. The barrel cover can be made into a fully open door, so as to facilitate the cleaning of equipment and replacement of products. The standard product adopts the belt wheel to drive the cycloid reducer. Compared with the large torque of the gear reducer, the elastic connection of belt transmission has the advantage of protecting the transmission parts in the case of overload. · Flexible disassembly and installation The screw spindle is connected to the drive shaft flange in the barrel body and can be removed quickly if the agitator shaft type needs to be repaired or replaced. Flexible disassembly design enables u-shaped cylinder body to be completely welded to both ends of plates, avoiding the gap of material accumulation caused by the connection of large flange of the cylinder body and reducing the residue.
