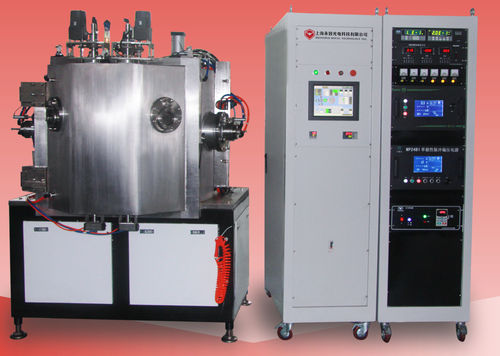

PVD deposition machine RTAC-SPMF

arc evaporationthin-filmvacuum

Rainbow color decorative coating Arc PVD Plating Machine , Arc Ion Vacuum Coating Unit What is Arc PVD Plating? Multi-arc ion vacuum coating machine take vacuum arc discharge technology as evaporation source. Igniting the evaporation source (cathode) in a vacuum environment to form a self-sustaining arc discharge between the anodes. From the cathode arc glory point cathode substance released ions. Since the current local concentration, the Joule heat generated by the cathode material locally explosively into plasma, the bias effect in the work piece compound with the reaction gas, and the plated layer is formed on the deposition surface of the work piece. Arc PVD Plating Machine Features 1. gear for water- cooling 1) novel design, compact structure, inter-series universal and interchangeable. 2) water - base, good heat dissipation. 3) rolling bearings and transmission gear can add oil to run life increase 3-5 times. 2. Rotation device is a planetary rotation mechanism, according to the different coating process, designed to: 1) Revolution type 2) the Revolution& Rotation type 3. clamping work piece very convenient, innovative design. 4. Taking spring hinges automatic lock to replace the traditional manual door locking buckle, reduce operating procedures, enhance the overall vacuum airtight doors and rubber seals to reduce destruction. 5. New structure vacuum vessel designing, the user can upgrade to multi-functional coating equipment according to their requirement 6. Multi arc ion coating machine using advanced technology, it can coat not only decorative film but also functional film , numbers of processes complete one-time.
