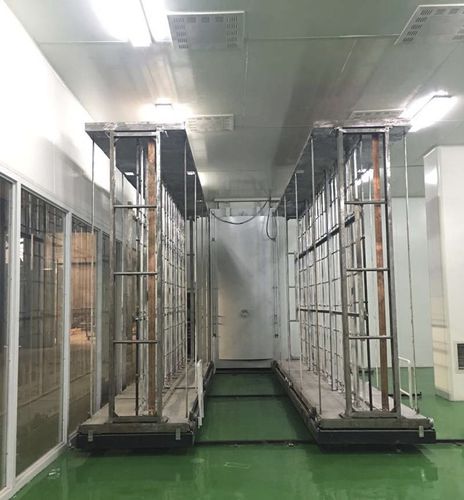

PVD deposition machine RTEP-6638

thermal evaporationmetalized filmvacuum

Car Accessories ABS Reading Light Lamp Cover Trim PVD Vacuum Coating Machine, Automotive Logo Billboard Vacuum Chroming Why us? Advanced production machineries (milling, welding,cutting,vacuum leak testing)combined with standardized production procedures and strict tests enable Royal Technology to produce high quality, reliable and low cost coating systems. Quality, service and on-time delivery are the core principles of Royal technology’s business. A strategy of openly outsourcing simple components to professional manufactures allows us to focus attention to key parts and components R&D, manufacturing. Strict quality control policies and rigorous selection of qualified suppliers assure Royal Technology’s customers receive the most advanced, high-end quality equipment at the most affordable cost. Aluminum Thermal Evaporation Coating System Summary: The RTEP6638 resistance evaporation coating equipment is a cube chamber model for PVD Chrome metalizing system was customized designed and manufactured for Car LOGO board reflection film deposition. Max. Size substrate: Diameter 5500mm, depth: <300mm. Capacity: 2 pieces for max. Size product; 4~12 pieces depends on dimensions. About Thermal Evaporation Filament Technology: It Introducing the work pieces into the vacuum chamber, when the chamber's vacuum pressure is up to 5.0*10-2～8.0×10-3Pa with different stage of vacuum pumps ( Rotary Piston Vacuum Pump, Rotary Vane Pump, Roots Vacuum Pump,Diffusion Pump) , and then evaporate the Chrome filaments which hold in the tungsten filament ( or board).
