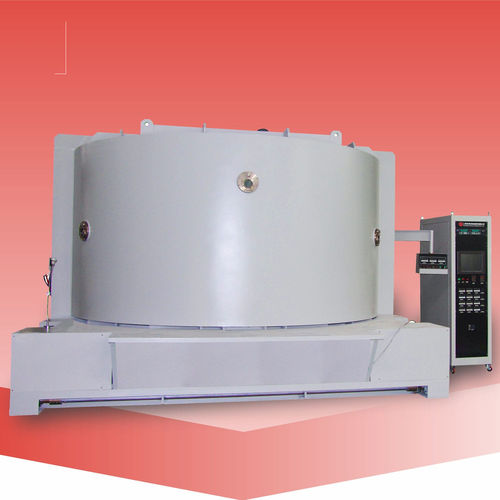

PVD deposition machine RTEP3618

thermal evaporationthin-filmmetalized film

Car Logo Aluminum Vacuum Metalizing Machine / PMMA Automotive Logo Billboard Chroming Machine 1. Car Logo Aluminum Vacuum Metalizing Machine Working Theory About Thermal Evaporation Filament Technology: It Introducing the work pieces into the vacuum chamber, when the chamber's vacuum pressure is up to 5.0*10-2～8.0×10-3Pa with different stage of vacuum pumps ( Rotary Piston Vacuum Pump, Rotary Vane Pump, Roots Vacuum Pump,Diffusion Pump) , and then evaporate the Chrome filaments which hold in the tungsten filament ( or board). When the work pieces are turning around in a rotary driving system, the chrome material would deposit on the substrates surface and generate a highly uniform coating layer. 2. Car Logo Aluminum Vacuum Metalizing Machine Coating Properties Finishing Properties: PVD chrome on PMMA (Acrylic) surface, which generates the outstanding coating layers as below: During the day time, sign symbols look like solid metal ( stainless steel effect); while at night, they are illuminated ( LED light inside is installed ) from front, back and side views.
