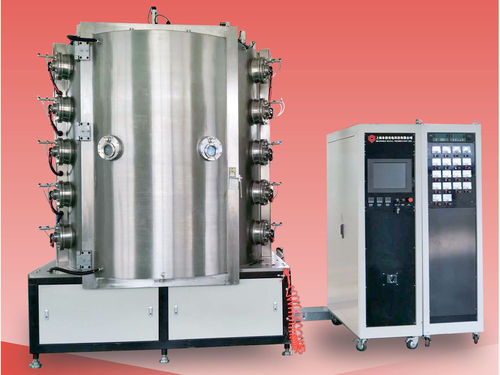

PVD deposition machine RTAE1600

magnetron sputteringarc evaporationthin-film

The RTAE1600 machine is designed and produced for glass decorative coating film, it contains both tungsten wire evaporation and arc evaporation sources. Thermal evaporation source is for the non-transparent silver and gold colors by Copper and Aluminum deposition to get high reflection surface finishing. The arc evaporation sources to generate more colors like amber, blue, rainbow color, black, charcoal grey, non-transparent gold and half-transparent gold colors etc. Mainly used for glass ware decorative coatings, like glass mirror, glass necklace, crystal LED lighting, glass mosaic floor tiles, crystal drink ware etc. The main configuration is cathodic arc evaporation sources, with Ion source unit and bias power for arc discharging to enhance the film adhesion efficiently. RTAE1600 glass ware PVD ion plating machine advantages Exclusive vacuum pumping system design concept has low power consumption, which reduce 30% ~ 50% production cost per hour. Patented Cathodic Arc Power Supply developed to minimize this disadvantage : macro-particles (droplets)formation. Planar Ion source with high energy for ion bombardment;( for option) The Cathodic arc power supply has DC and Pulsed models, stable arc current; accurate current control with low overshoot. Cathodic Arc source exclusively designed and produced to maximize the targets utilization ( up to 70% for a some targets) Resistance thermal evaporation and arc evaporation sources installed in the chamber to satisfy various glass ware coatings
