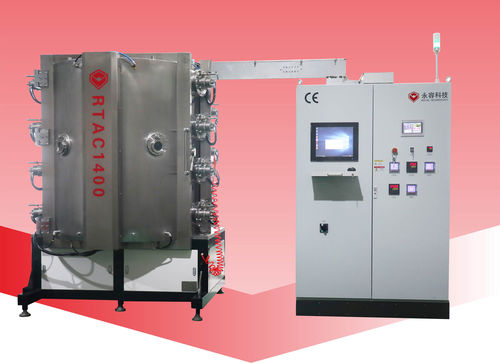

PVD deposition machine RTAC1400-PLUS

arc evaporationthin-filmvacuum

Conventional gold or silver coatings on glassware, glass cups, vase etc are by aluminum vacuum metallization combine the UV spraying or thermal curing line. In 2020, we developed an advanced coating technology to generate decorative colors on glassware directly without spraying painting processes ( base and post coatings), which is by ion plating technology- arc evaporation. This coating method is completely get rid of the spraying paintings, help customers to reduce the investment of production line and labor cost, saving energies. Features: STANDARD, MODULAR DESIGN 1. PS electrical enclosure, designed and manufactured strictly following CE standards 2. Central control cabinet with PLC, power output control and general power distributor 3. Operating software program in Simens CPU +PLC is exclusive developed by Royal Technology, each set machine is ready for system upgrading. IPC one touch operation system. 2-sides gold coating on Glassware with Ion Plating Machine, Porcelian ware gold and silver coating with patterns 4. With 2 sets trolley and racks systems can push in/pulling out of chamber flexibly, to improve the productivity. Min. extra 2 cycles of production / 24 hrs. 2-sides gold coating on Glassware with Ion Plating Machine, Porcelian ware gold and silver coating with patterns 1 Advantages: Strong adhesion Both inside & outside seeing through is Gold color Many other more bright colors of final finishing Excellent scratch resistance Enables longer life of products Environmentally-friendly process Energy saving and labor cost reduce Higher productivity
