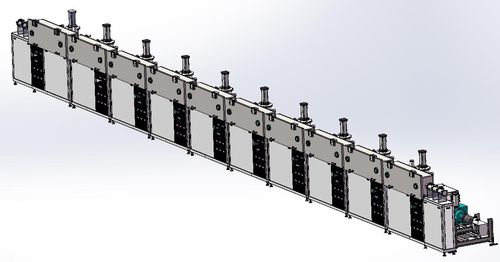

Horizontal inline sputtering machine RTSP1480

in-linemagnetron

The Air-to Air full continuous coating line is a completed continuous coating process processes which including cleaning pre-treatment in the atmosphere environment, and then the substrates ( strips or wires) enters into the vacuum chamber to get metal films deposited, in then end it back to atmosphere environment again through buffering chambers. The coating line key structural modules: A: Substrates (strips or wires) cleaning pre-treatment module B: Cooling down module C: Annealing module D: Film deposition chamber E: Loop devices and vacuum buffering chamber. The whole coating line’s structure, operation and control system is more complex, extremely high investment but the advantages of high output and sharping down production cost efficiently make it is very attractive for manufacturers. 1. Coating Films: 1.1 Conducitve metals: Al, Cr, Cu, Ti, Zr, Ag, Au, Ni etc. 1.2 Non-conductive metal based films: Tantalum(Ta ), TaN, Ta2O5, Silicon (SiOx) , Indium (In), Niobium (Nb) TiNbN etc. Application 1. Metal conductive filaments 2. Metal coil strips, thickness is less than 1mm 3. Fiber-Optic Cables 4. Chemical fiber wires 5. Chemical fiber line 6. Glass yarns and carbon yarns copper coating 7. Carbon yarns and glass yarns aluminum coating 9. PVD silver plated copper wire, 10. Silver plated fiber- optic cable 11. Gold plated wire machine 12. Silver-plated copper strip 13. Silver plating on copper , bronze and brass cables 14. New Multi-Layer Coating Line for Copper wire and strips 15. Silver Plating Machine for Fiber Optical Cable
