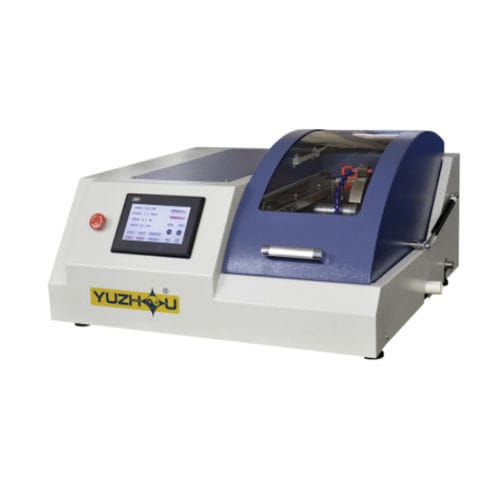

Metallographic cut-off machine JMQ-60Zrotary bladesamplePLC-controlled
Add to favorites
Compare this product
Characteristics
- Technology
- rotary blade
- Product handled
- sample
- Control type
- PLC-controlled
- Applications
- for industrial applications, metallographic
- Configuration
- bench-top
- Other characteristics
- automatic, precision
- X travel
90 mm
(3.54 in)- Y travel
170 mm
(6.69 in)- Overall length
730 mm
(29 in)- Overall width
940 mm
(37 in)- Height
410 mm
(16 in)
Description
●Single chip computer control cutting machine.
●Suitable for the precision cutting of metal, electronics, ceramics, crystal, hard alloy, rock, concrete, organic material, biological material (tooth, bone) etc.
●Cutting without deformation .
●Continuous thin slice cutting; high accuracy positioning; wide range of speed adjustable; strong cutting ability;
●Equipped with cooling system;
●Can be preset feed speed; Touch Screen control; liquid crystal display;
●Two position for clamping; with safety switch closed cutting room;
●Ideal equipment for industrial and mining enterprises and institutes.
Feeding Speed
0-36mm/min (Adjustable step size 0.1mm)
Cutting Speed
500-3000rpm
Maximum Cutting Diameter
Ø 60mm
Cutting Disc
Ø200×1×Ø32mm
Cutting Power
1500W
Power Supply
380V 50HZ
