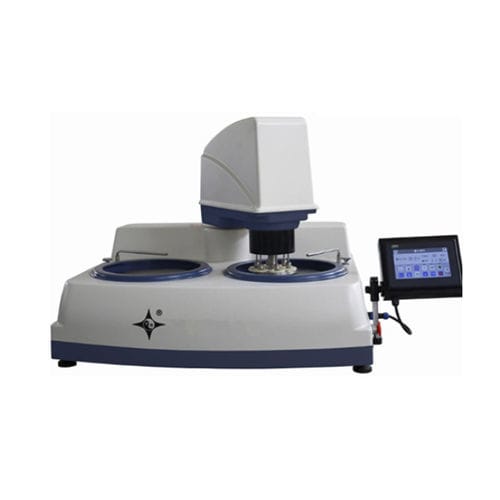

Metallographic sample grinding polishing machine YMPZ-2 series

for sample preparationfor metalographic laboratories

●Produced with ABS material. ●The latest product with beautiful appearance. ●High resolution LCD touch screen panel ●Controlled by single chip microcomputer. ●DC brushless motor. ●Non-toxic painted. Strong large support chassis design ensures the precision rotary balance.Powerful motor brings strong power and efficient grinding and polishing . ●Spindle leak-proof design and the super mute design ●It supports for fast disk system, with the use of elasticity, and can be used with automatic grinding device. ●It can replace the manual grinding and polishing of the procedure, timing and set the speed of grinding head. ●It can increase the grinding quality and production efficiency ,it is adapted to various materials preparation of test samples. ●The platen speed of polishing disc operates independently. Product Name Touch Screen Automatic Grinding and Polishing Machine Fuction Magnetic Dual Discs , Stepless, Auto-head Polishing and Grinding Disc Diameter 250mm 300mm Rotating speed 100～1000r/min, stepless Or four speed 250r/min, 500r/min, 750r/min, 1000r/min Motor DC Brushless Motor, 220V, 1.1kw Rotating Speed Stepless 30~120r/min Center Cylinder Pressure 0-0.5Mpa (Suggest 0.3~0.4 Mpa) Planetary Cylinder Pressure 0-0.5Mpa (Suggest 0.2~0.3 Mpa) Sample installation quantity 6 Motor of Grinding Head DC Brushless Deceleration Motor, 220V, 100W Dimensions 725×1200×760mm Net Weight 135Kg
