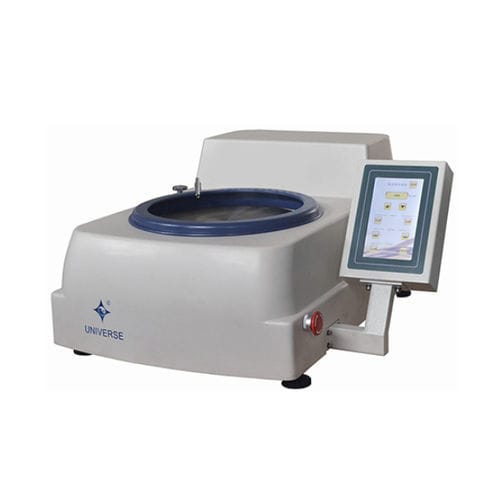

Metallographic sample grinding polishing machine YMP-1-0 series

for sample preparationplatefor metalographic laboratories

●Produced with ABS sewage collection plate and cover with a new and beautiful appearance. ●Controlled by single chip microcomputer, grinding disc 100RPM-1000RPM of stepless speed regulation with touch screen display and control. ●DC brushless motor can be used for a long time. ●Non-toxic painted. Strong large support chassis design ensures the precision rotary balance. ●Powerful motor brings strong power and efficient grinding and polishing ●Spindle leak-proof design ensures the bearing almost without damage ●Super mute design brings a good experience. ●It supports for fast disk system ●Can be adapted to various materials preparation of test samples. ●The polishing disc diameter is large ●The platen speed of polishing disc operates independently. Function Magnetic Single Disc, Stepless Dual Single Discs, Stepless Polishing and Grinding Disc 250mm 300mm Abrasive Paper Diameter 250mm 300mm Rotating Speed Stepless 100～1000r/min Or Four Speeds: 250r/min, 500r/min, 750r/min, 1000r/min Motor DC Brushless Motor,220V, 1.1kw Dimensions 725x500x360mm 725x900x360mm Net Weight 55kg 93kg
