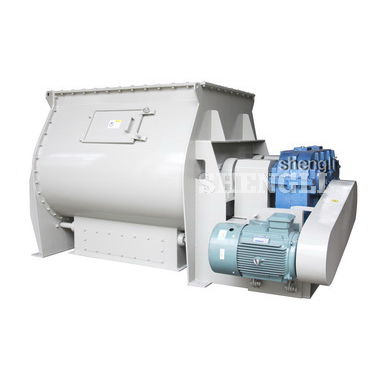

Paddle mixer WZL series

batchgranulespowder

Introduction: Double shaft mixer is widely applied in chemical, biological, and construction material. It can mix powder, granule, and fiber especially in battery, construction, environmental, mineral and agricultural line. With the most powerful motor, material can be mixed evenly in the shortest time. It is particularly good at mixing material with big difference in gravity, mesh size, fluidity. 1.Flexible material selection Material can be chosen from carbon steel, manganese steel, ss304, 316L and 321; besides, different material can also be used in combination.Material is different between the part contact with the raw material and the parts don’t contact with the raw material. Surface treatment for stainless steel include sandblasting, wiredrawing, polishing, mirror polishing, all can be used in different parts of a mixer. 2.Reliable driven unit The driven unit, power and speed are varied according to different raw material, starting method, and processing.Because of the meshing relationship for the inner paddles of the double shaft paddle mixer, the double shaft driven unit is required to be equipped with synchronous ability. The four driven combination launched by Shengli Co. that can meet different requirements are the combination of two synchronous gear box, double output gear box, double synchronous planetary gear box, and the combination of reducer and chain.The combination of Sk-series double synchronous gear box is the best configuration for double shaft paddle mixer.
