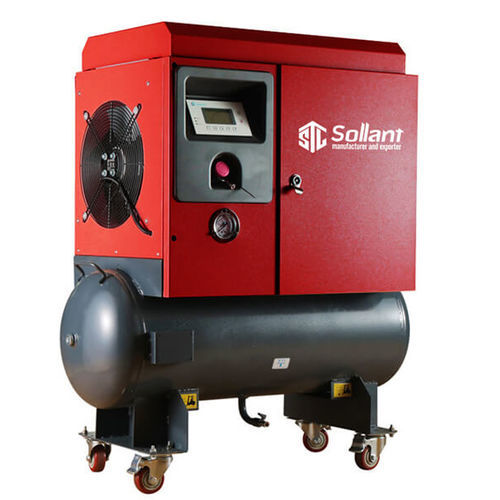

Screw compressor SLTS series
airelectrically-poweredmobile

Screw compressor - SLTS series - Shanghai Sollant Energy Saving Technology Co., Ltd - air / electrically-powered / mobile
Screw compressor - SLTS series - Shanghai Sollant Energy Saving Technology Co., Ltd - air / electrically-powered / mobile
Screw compressor - SLTS series - Shanghai Sollant Energy Saving Technology Co., Ltd - air / electrically-powered / mobile - image - 2
Screw compressor - SLTS series - Shanghai Sollant Energy Saving Technology Co., Ltd - air / electrically-powered / mobile - image - 3
Screw compressor - SLTS series - Shanghai Sollant Energy Saving Technology Co., Ltd - air / electrically-powered / mobile - image - 4
Screw compressor - SLTS series - Shanghai Sollant Energy Saving Technology Co., Ltd - air / electrically-powered / mobile - image - 5
Screw compressor - SLTS series - Shanghai Sollant Energy Saving Technology Co., Ltd - air / electrically-powered / mobile - image - 6
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
mobile
Lubrication
oil-lubricated
Application domain
industrial
Voltage
220 V, 380 V
Other characteristics
high-efficiency, heavy-duty, small, variable-speed, with integrated filtration, inverter, fixed-speed
Tank volume

Max.: 290 l
(76.6 gal)

Min.: 100 l
(26.4 gal)

Pressure

8 bar, 10 bar, 12.5 bar, 16 bar
(116.03 psi, 145.04 psi, 181.3 psi, 232.06 psi)

Flow

Max.: 1,200 l/min
(317.01 us gal/min)

Min.: 150 l/min
(39.63 us gal/min)

Power

Max.: 9 kW
(12.24 hp)

Min.: 2.2 kW
(2.99 hp)

Length

Max.: 1,320 mm
(52 in)

Min.: 640 mm
(25 in)

Width

Max.: 600 mm
(24 in)

Min.: 400 mm
(16 in)

Height

Max.: 1,530 mm
(60 in)

Min.: 640 mm
(25 in)

Weight

Max.: 290 kg
(639.3 lb)

Min.: 76 kg
(167.6 lb)

Noise level

Max.: 68 dB

Min.: 55 dB

Description

Single-phase 220V is suitable for a wide range of scenarios, wide voltage use, frequency conversion technology, small starting current, and residential electricity consumption, and the cost is about half of industrial electricity consumption. 220V frequency conversion motors are 50% more energy efficient than ordinary motors Industry characteristic single-phase permanent magnet frequency conversion air compressor manufacturer Five-stage separation technology with independent intellectual property rights to ensure that the oil content of the export is controlled at 2ppm; Back to the original core, six heavy-duty bearings are used, connected by Morse taper, and the vibration frequency is controlled within 1mm/s; Efficiency up to 95%, “IE4” high energy efficiency motor; Constant pressure and silence; Large size air end, low speed, sufficient air volume; Six heavy-duty bearings, Morse taper connection; Easy to install and maintain. REDUCE ENERGY COSTS Under various working conditions, the gas demand will fluctuate up and down. After a lot of research and calculation of market demand, SOLLANT has confirmed that there are significant differences in the demand for air volume of compressors under different circumstances. Only about 10% of applications require a constant air supply. Therefore, the inverter compressor can play a greater role in energy saving. Energy costs often account for 70% of the life cycle cost of a compressor. Producing compressed air can account for as much as 40% of all electricity costs in a plant. In almost every plant, gas usage varies over time, with peaks and lows.

VIDEO
