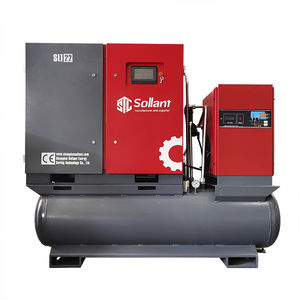

Screw compressor SLTI-7.5F
airelectricstationary

screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electric
Portability
stationary
Application domain
industrial, laser cutting machine
Applications
construction
Other characteristics
direct-drive, fixed-speed, with electronic control
Pressure

Max.: 1.2 MPa

Min.: 0.7 MPa

Flow

Max.: 1.6 m³/min
(56.5 ft³/min)

Min.: 0.7 m³/min
(24.72 ft³/min)

Power

7.5 kW
(10.2 hp)

Length

1,600 mm
(63 in)

Width

700 mm
(28 in)

Height

1,500 mm
(59 in)

Weight

370 kg
(815.7 lb)

Noise level

60 dB

Description

1.Integrated design with beautiful appearance, fewer parts, and connectors reduce the possibility of unit failure and leakage; direct discharge of dry compressed air, fully guarantee the quality of user terminal gas; greatly save customer installation costs and use space. 2.With new modular design structure, compact layout, ready to install and work. 3.After strict testing of the unit, the vibration value of the unit is far lower than the international standard. 4.The integrated and optimized pipeline design reduces the length and number of pipelines, thereby reducing the incidence of pipeline leakage and internal losses caused by the pipeline system. 5.Adopting a freeze dryer with excellent performance, a compact rotary refrigerationcompressor, and a high cooling capacity configuration scheme to ensure reliable operation under high-temperature conditions. air compressor with dryer rotary screw air compressor with dryer dry air compressor air compressor for laser cutting machine air compressor for fiber laser cutting machine laser cutter air compressor
