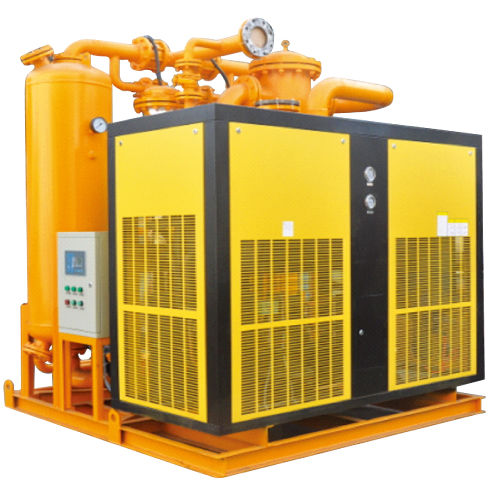

Heatless desiccant compressed air dryer ZDA/W108-1000
high-temperaturelarge

Heatless desiccant compressed air dryer - ZDA/W108-1000 - Shanghai Success Engine Compressor Co.,Ltd - high-temperature / large

Add to favorites

Compare this product

Characteristics

Technology

heatless desiccant

Other characteristics

high-temperature, large

Capacity

Min.: 10.8 m³/min
(381.4 ft³/min)

Max.: 100 m³/min
(3,531.47 ft³/min)

Working pressure

7 bar, 10 bar
(101.53 psi, 145.04 psi)

Motor power

Min.: 3.15 kW
(4.28 hp)

Max.: 15 kW
(20.39 hp)

Weight

Min.: 680 kg
(1,499.1 lb)

Max.: 4,950 kg
(10,912.9 lb)

Description

The high temperature and high humidity air from the air compressor will do heat exchanges and cooling dehumidification with cold air at first which were come from pre-cooler and evaporator.Then,it will into the evaporator and do heat exchanges with refrigerant, the air temperature down to 2-10℃,separated by gas-water separator, a large number of condensate discharged to the machine, and get more dry air. The air is discharged from the gas-water separator to the pre-cooler for heat exchange with the hot and humid air from the compressor, and the cooling is recovered while the temperature itself is also increased. The compressed air from the refrigeration unit enters the high efficiency oil remover for oil removal, and then into the adsorption dryer working tower for moisture adsorption to get ultra-low dew point of compressed air, finally, through after-filter into the air point directly. In the limited space, the cleanest compressed air is obtained with the least amount of air consumption.
