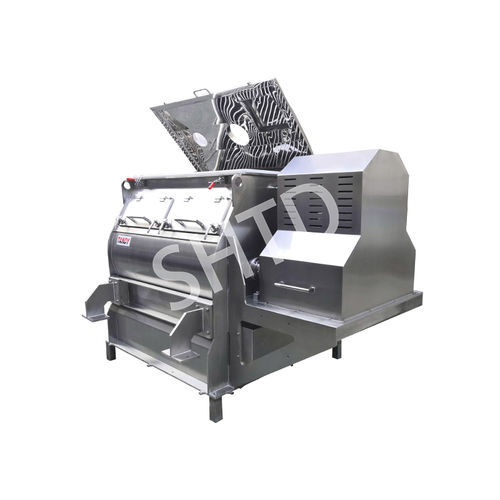

Paddle mixer TDW series

batchpowdergranules

TDW non gravity mixer is called double-shaft paddle mixer too, it is widely applied in mixing powder and powder, granule and granule, granule and powder and a bit liquid. It is used for food, chemical, pesticide, feeding stuff and battery etc. It is high precision mixing equipment and adapts to mix different sizes of materials with different specific gravity, the proportion of formula and mixing uniformity. It can be a very good mix for which ratio reaches 1:1000~10000 or more. The machine can make the partial of granules broken after crushing equipment added. Product specification (1).High efficiency：Rotate reversely and throw materials to different angles, mixing time only 1-3 minutes. (2).High uniformity：Compact design and rotated shafts be filled with hopper, mixing uniformity up to 99%. (3).Low residue：Only 2-5mm gap between paddles and wall,open-type discharge outlet.(4).W/O leakage：Patent design & ensure the rotating axle & discharge outlet w/o leakage.(5).Full clean：Full weld and polishing process for mixing hopper, w/o any fastening piece like screw, nut. (6).Elegant appearance: The whole machine is from full stainless steel to make its profile elegant except gear reducer case, direct mechanism and bearing seat.
