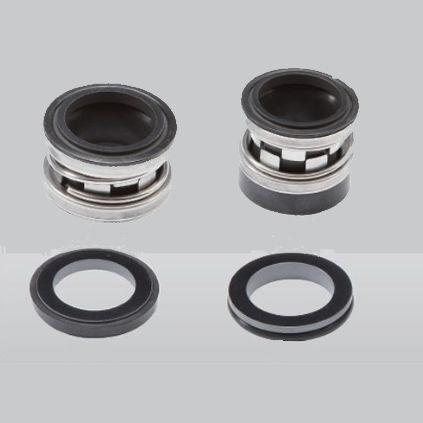

Spring mechanical seal TS 2100

NBRcarbonceramic

TS 2100 Machined Mechanical Seal (replace AESSEAL B05,Crane 2100 and FLOWSERVE 140) Our Mechanical seal model 2100 can Replace AESSEAL B05,Crane 2100 and FLOWSERVE 140 . we usually us seat type G6 for match it. The normal material combination include carbon/ceramic/nbr/ ss304,resin c... Our Mechanical seal model 2100 can Replace AESSEAL B05,Crane 2100 and FLOWSERVE 140. we usually us seat type G6 for match it. The normal material combination include carbon/ceramic/nbr/ ss304,resin carbon/ceramic/nbr/ss304/,sic/sic/nbr/ss304,tc/tc/nbr/ss316 and so on. we also can make changes as customers'requirement or totally totally design a new type of mechanical seal to meet clients'needs. Pressure: ≤1.6MPa Speed: ≤15 m/s Temperature: -30℃～+150℃ Rotary Ring (Carbon/Sic/TC) Stationary Ring (Ceramic/Sic/Tc) Secondary Seal (nbr/Epdm/VITON) Spring & Other Parts (Sus304/Sus316) The TS2100 is a direct replacement for the John Crane Type 2100. The TS2100 is the standard working height, and the TS2100K is for applications requiring a seal with an extended working height. The standard seal for the TS2100 or TS2100K is the “M” seat, but the “BS” and “BO” seats are also available.
