Spring mechanical seal TS MG9
for water pumpsNBRcarbon

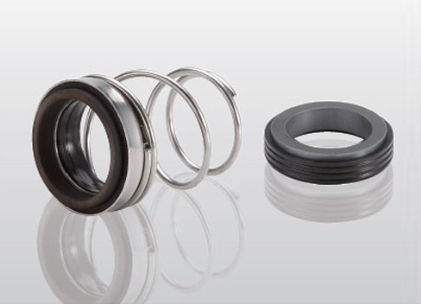

Spring mechanical seal - TS MG9 - Shanghai Trisun Parts Manufacture Co., Ltd. - for water pumps / NBR / carbon
Spring mechanical seal - TS MG9 - Shanghai Trisun Parts Manufacture Co., Ltd. - for water pumps / NBR / carbon
Add to favorites
Compare this product


Characteristics

Type
spring
Applications
for water pumps
Material
NBR, carbon, ceramic
Operating temperature

Max.: 180 °C
(356 °F)

Min.: -30 °C
(-22 °F)

Description

TS MG9 Machined Mechanical Seal (Replace BURGMANN MG9） Our Mechanical seal model MG9 can Replace BURGMANN MG9,which is widely used for water pumps and submerged pump. we usually seat type G60 to match it. The normal material combination include carbon/cer... Features Our Mechanical seal model MG9 can Replace BURGMANN MG9,which is widely used for water pumps and submerged pump. we usually seat type G60 to match it. The normal material combination include carbon/ceramic/nbr/ss304,resin carbon/ceramic/ nbr/ss304/,sic/sic/nbr/ss304,tc/tc/nbr/ss316 and so on. we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs. Operating Limits: Pressure: ≤1.0MPa Speed: ≤10m/s Temperature: -30℃~+180℃ Rotary Ring (Carbon/SiC/TC) Stationary Ring (Ceramic/SiC/TC) Secondary Seal (NBR/VITON/EPDM) Spring & Other Parts (SUS304/SUS316)
