Microstepping motor controller max. 8 A, 12 - 40 VDC | UIM 24108embedded
Add to favorites
Compare this product
Characteristics
- Motor type
- microstepping
- Other characteristics
- embedded
Description

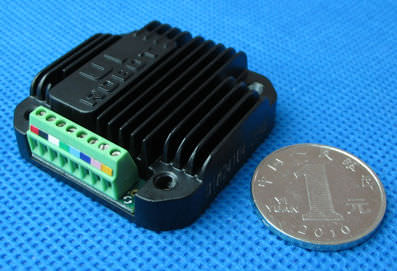

UIM24108 Stepper Motor Controller with Intelligent Drives
Embedded DSP microprocessor, in-line operation through RS232
Smart, fault-tolerating and user-friendly interface.
Miniature Size 42.3mm*42.3mm*13.5mm
Integrally designed to fit onto motors seamlessly, as wellas work standalone
RS232 3-wire serial communication, max 115200 bps, automatic host Baud Rate detecting
12-40VDC supply, max 8A per Phase adjustable current , 1-16 microstepping
Dual H-bridge, PWM costant current control
Die-cast aluminum heat sink enclosure
