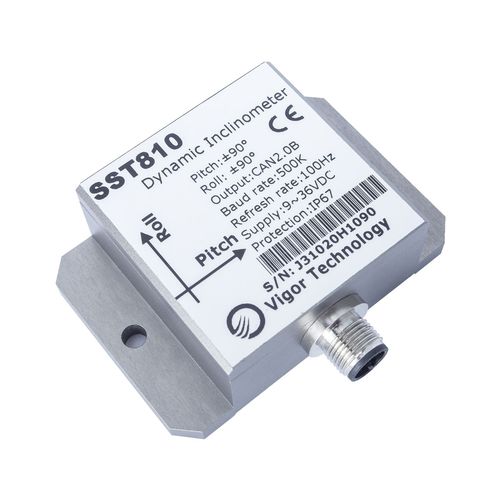

2-axis inclinometer SST810RS-485RS-232CAN
Add to favorites
Compare this product
Characteristics
- Number of axes
- 2-axis
- Output
- RS-485, RS-232, CAN
- Technology
- MEMS, inertial, electrolytic
- Other characteristics
- economical, with gyroscope, IP67, drillship
- Inclination
Min.: -90 °
Max.: 90 °
- Resolution
0.05 °
Description
- No drift, dynamic tilt measuring
- Lowest cost, high working performance
- Built in MEMS tri-axis accelerometer and tri-axis gyroscope
- Dynamic repeatability ±0.5°
- Highest refresh rate 1000Hz
- X/Y/Z angular rate & acceleration data available
- Autonomous working, do not need any external auxiliary
- Mounted wherever needed
Application
Ship, ROV, engineering machinery, rail transportation, automotive, robot, radar positioning, weapon platform, photoelectric platform, logistics, etc
