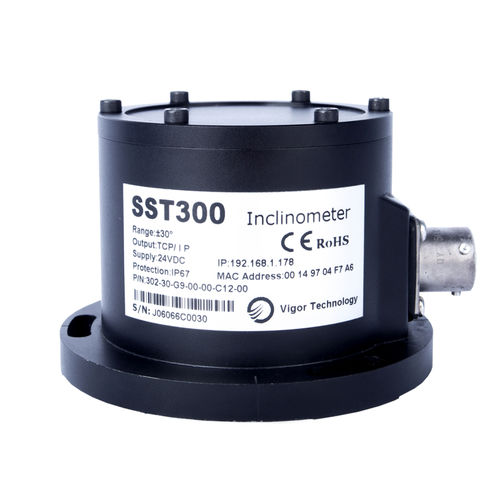

2-axis inclinometer SST300

digitalanalogMEMS

Combined absolute accuracy up to ±0.01° @25 °C. Combined absolute accuracy includes absolute linearity, horizontal axis error, zero offset, repeatability and hysteresis error. Horizontal axis error as low as ±0.1%. Zero offset ±0.005°. Response time 0.3s @ t90. Factory-provided input shaft misalignment data for more accurate installation and higher actual measurement accuracy. Vibration suppression adjustment and setting in the field. Optional full-scale temperature compensation accuracy: ±0.05° @ -40°C～+85°C. Diversity of output methods. EMC certification. II. General Description SST300 series 2-axis inclinometer features excellent working performance, high-stability design, strict process and structural design, optimal manufacturing material and etc., and it is processed with heat treatment, thermal analysis and finite element analysis so as to achieve maximum reliability and stability.
