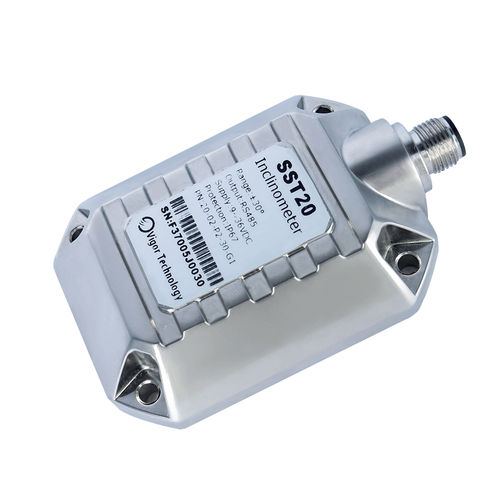

1-axis inclinometer SST20
CANMEMSeconomical

1-axis inclinometer - SST20 - Shanghai Vigor Technology Development Co., Ltd. - CAN / MEMS / economical
1-axis inclinometer - SST20 - Shanghai Vigor Technology Development Co., Ltd. - CAN / MEMS / economical
1-axis inclinometer - SST20 - Shanghai Vigor Technology Development Co., Ltd. - CAN / MEMS / economical - image - 2
Add to favorites
Compare this product


Characteristics

Number of axes
1-axis
Output
CAN
Technology
MEMS
Other characteristics
economical, IP67, IP69K, for angle measurement
Inclination

Max.: 90 °

Min.: -90 °

Resolution

0.01 °

Description

Main Features: - CAN2.0B inclinometer/ tilt sensor - Low cost, high performance, suitable for batch application - 50Hz refresh rate, 10Hz response frequency - ±0.5% Cross-axis error, ±0.15° or ±0.07°accuracy - Available to horizontal, vertical, headstand, etc installation method - Auto-correct installation error - IP67 protection - 9~36VDC supply, compatible to automotive application - Survive to 1500g shock while operating - OEM available, MIL/ EN/DIN/ISO/IEC testing standard upon request application Applications: - Vessel - Engineering machinery - Solar/wind energy - Zutomobile/truck/vehicle - Communication/electric - Tower monitoring - High-voltage pylon monitoring - Antenna - Construction engineering - Landslide, etc
