Water pump WQX D series

slurryoilwith electric motor

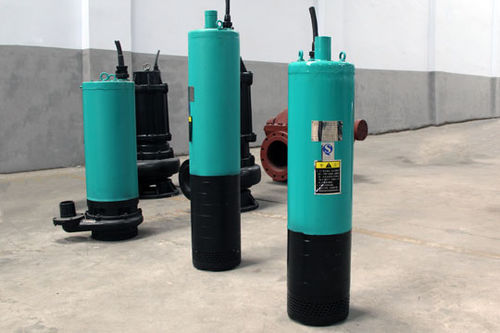

WQX series of bottom suction sewage pumps are suitable for pumping sewage and sludge in any severe environment. This series of pumps are bottom suction type, which can pump surface water of working place completely. Electric motor is three-phase asynchronous motor. It is with small floor space, convenient installation and long service life. WQX D Type Bottom Suction Submersible Sewage Pump Product feature 1. WQ series of bottom suction submersible sewage pump is composed of submersible three-phase asynchronous motor and sewage pump. Electric motor is connected with pump directly. There is reliable mechanic seal device between them, which can prevent exchange between the cooling liquid in motor cavity and pumped medium. So that pump can run reliably for long time. 2. Electric motor winding is anti-water polyethylene electromagnetic wire with nylon sheath. Motor cavity or sealing cavity is filled of NO.10 machine oil or NO.25 transformer oil (when pump is placed by vertical, oil submerges the upper bearing will be ok.) Electric motor is adopted radial ball bearing, which is very easy to dismantle and maintain. 3. Small flow pump is centrifugal or spiral-flow type of structure, which is suitable for pumping ordinary sewage or high lift water supply for projects; large capacity pump is double flow and non-clocking structure or mixed-flow structure, which is suitable for sewage circulation of coal washery, pumping slurry and river water irrigation, etc. 4. Pump is non-blocking model, so its passage ability of solid material and other impurity is very good.
