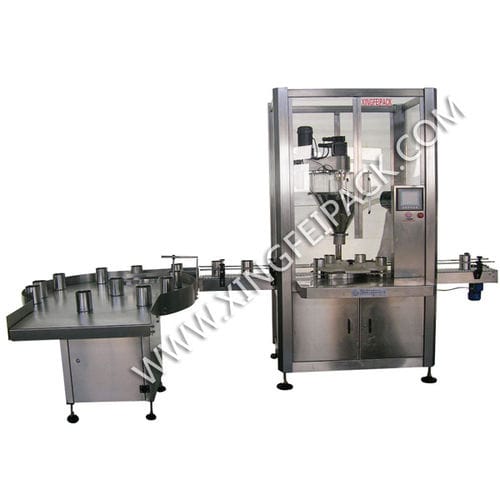

Automatic filling machine XFF-G

bottlecanfor granulates

The machine can finish the process of feed , dose, fill , and failed packs detect  & delete automatically. The machine is suitable for packaging powdery & grainy product, for instance, milk powder, monosodium glutamate, solid beverage, icing sugar, dextrose, feed, coffee, solid medicament, powdery & grainy additive, dye, etc. II. Character: 1.Chinese/English touch screen and PLC control system. Auger is driven by servo motor. 1.Equipped with automatic can/bottle feeding system with the functions of no-can-no-filling. 2.Open-door hopper, a frame type machine be designed the humanization to easily wash. Reasonable mechanical structure, it is  easy to change  product and clean up. 3.The functions of over-weight warning, error message display and failed packs detecting & deleting, which never let any reject to pass through, ensure the packing quality. 4. 10 recipes can be saved for later using. 5.Have the functions of can support, vibration and dust extraction. III. Technical Parameter Packing weight 10-5000g Weighting range 1-6000g 1g （with a resolution of 1 g） Packing precision ≤1% Power supply 380/220V 50-60 Hz Power 2kw Weight 500kg Dimension 1750×2700×2300mm Container Volume Ф50-180mm height50-350mm ，Cylinder containers with a diameter of 50-180mm and a height of 50-350mm
