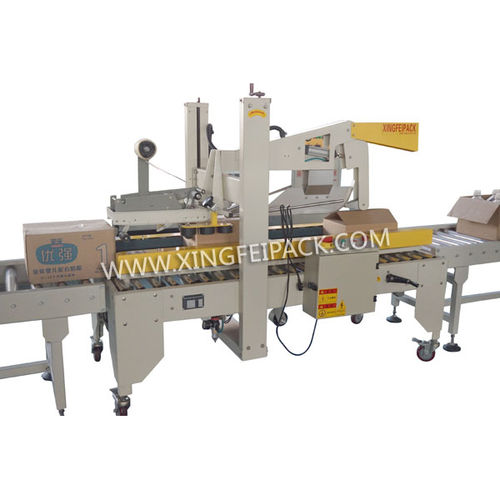

Multi-flap carton sealer XFC-FX

adhesive tapeautomatic

This machine is used for sealing the carton by tape after production packed into the carton. It has a wide application, such as food ,beverage, daily products, chemistry, pharmacy etc. Features Adopts imported electrical parts Manually adjust the width and height according the carton size Automatically fold the top flaps and attach the tape both top and bottom. Equipped with protection device for the cutter, avoid of any incident. Alarm and stops for lack of tape and door opens. Can be used individually or combined with the packaging line. Technical data Carton Size (L)200-500 (W)220-420 (H)180-500mm Table size 650-800mm Dimension L×W×H 2300×650×1500mm Power supply 110V,220V single phase,50/60Hz Air source 5kg/cm3 Width of the tape 48mm,60mm，72mm (alternative use) Weight 400kg
