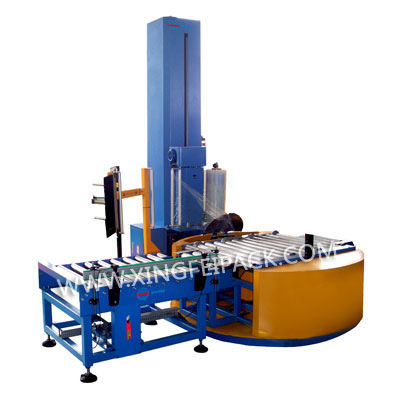

Turntable wrapping machine XFC-ZC
automaticpalletfood

turntable wrapping machine
turntable wrapping machine
Add to favorites
Compare this product


Characteristics

Type
turntable
Operating mode
automatic
Product applications
pallet, food, beverage
Other characteristics
stretch film
Height

3,000 mm
(118 in)

Width

2,000 mm
(79 in)

Length

3,000 mm
(118 in)

Machine weight

1,200 kg
(2,645.55 lb)

Maximum wrapping height

1,800 mm, 2,400 mm
(70.87 in, 94.49 in)

Maximum pallet length

1,200 mm, 1,400 mm
(47.24 in, 55.12 in)

Maximum pallet width

500 mm
(19.69 in)

Maximum pallet weight

2,000 kg
(4,409.25 lb)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 15 rpm
(94 rad.min-1)

Description

This machine used for wrapping up the products stacked on the pallet by stretch film , which could prevent the products falling from the pallet during transportation, and protect products from water and dust, easy transporting and storing. It is widely used in food , beverage , chemistry , hardware etc. Features: 1.Automatic film attaching , cutting ,smoothing and discharge after wrapping. 2.turning speed , wrapping layers , height could be adjusted 3.PLC control , touch screen operation , easy and clear . 4.Alarming for errors , error information displays on the screen 5.Alarming and stops for lack of film or products not arrived.
