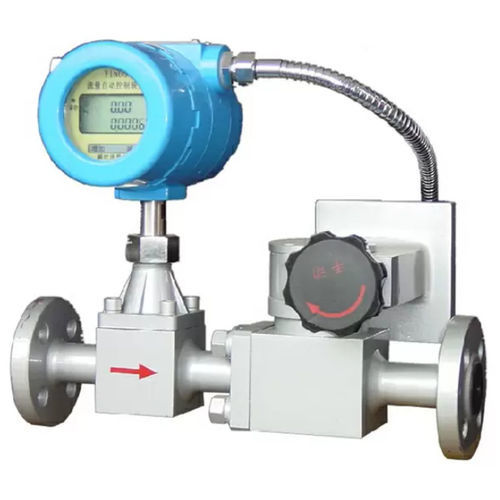

Liquid flow controller LZK for waterfor adhesivesdigital
Add to favorites
Compare this product
Characteristics
- Fluid
- for liquids, for water, for adhesives
- Other characteristics
- digital, compact, precision, for OEM, cost-effective
- Output
- analog, with electrical output signal
- Flow rate
Max.: 100 m³/h
(3,531.46667 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Pressure
16 bar, 25 bar, 40 bar
(232.1 psi, 362.6 psi, 580.2 psi)
Description
Only one set of LZK Series Flow Auto Controller can finish the adjustment process of one single circuit which assembles the flow meter, flow control valve and flow controller in one device. It has the features of high accuracy, anti- corrosive and easy operation. The typical applications are water/oil ration addition, water injection, and ration transferring of various liquids.
Main Specifications
1. Flow Range and Accuracy
A) Flow Range for Measuring Oil (Shown in Table 1)
B) Flow Range for Measuring water and waste water (Shown in Table 2)
