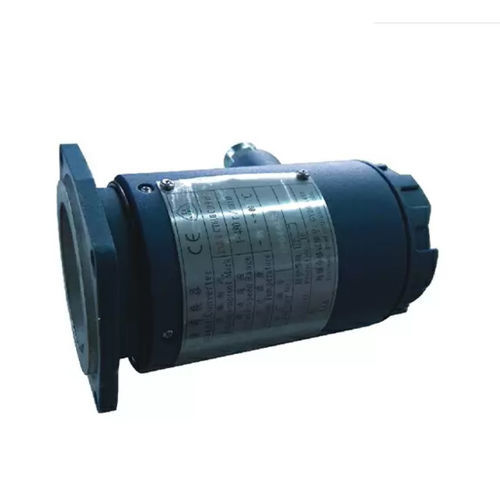

Pulse generator LPJ

current

This Generator can change the angle displacement of the axes into electrical pulse signals (F) or current signals (I), and measure the total angle displacement value and angular velocity of the axis of rotation. Allowed to be used with a variety of flow meters; long-distance signals can be transmitted into the local display meter or computer for inspecting and control the flow. Technical Datum I .Rotation speed Range: 2-300r/min 2.Output A. Standard Pulse: Pulse Frequency: 1000P/r(A&B) Accumulated Error:+1 Pulse Waveform: Square Wave Voltage:(Peak-to-Peak): VL<1V,VH=12VP-P Load Resistance:≥10KΩ B. Current: Response Frequency:0~ 10000Hz Current:4~20mA or 0~ 10mA Load:0-600Ω Response Time: < 1 Second 3.Ambient Condition: Temperature:-20~+ 70°C Relative Humidity<85% 4.Power Supply: Voltage: DC10~28V Current: <80mA Noise: ≯10mA(Input Noise) 5 .Anti-explosion: Grade: Exd II CT6(Only H2) Certificate GYB071488 6.Outline Structure:See Picture 2 7 .Electrical Interface:G 1/2
