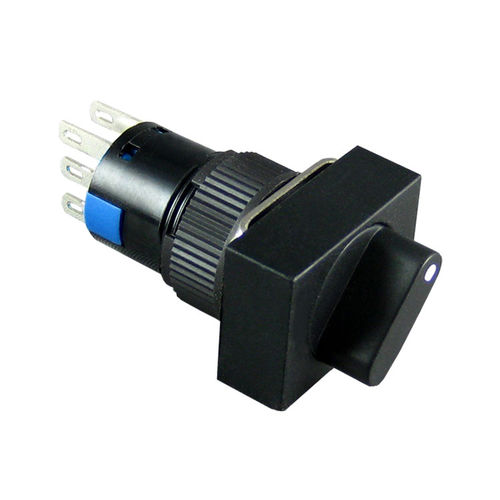

Rotary switch AX seriesbipolar4-poleIP40
Add to favorites
Compare this product
Characteristics
- Type
- rotary
- Number of poles
- bipolar, 4-pole
- Protection level
- IP40
- Mounting
- panel mount
- Other characteristics
- mechanical, plastic, 3-position, 4-position, rectangular, momentary
- Primary current
3 A
- Voltage
250 V
Description
Name：16mm black rectangular plastic 6 pin 3A 250V AC 4 pole 3 position rotary switch
Product Type： AX16-213
Max.Rating Current： 3A 250V AC
Contact Resistance： ≤50mΩ
Insulation Resistance： ≥100MΩ
Dielectric Strength： 1,500V
Electronic Life： Momentary:50,000 cycles
Alternate:25,000 cycles
Mechanical Life： Momentary:200,000 cycles
Alternate:50,000 cycles
Operating Temperature：-25℃~+55℃
Protection Degree： IP40
Certificate： CE、ROHS
