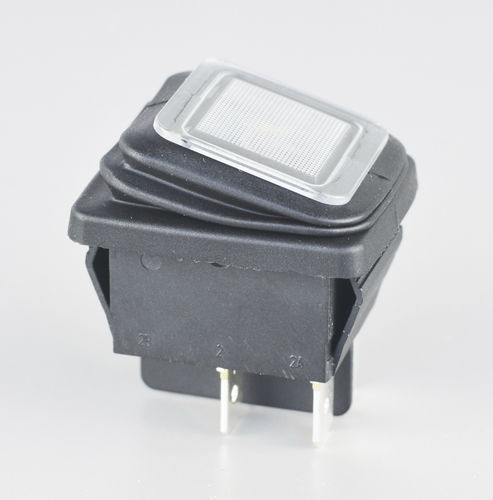

Rocker switch KCD2 seriesDPSTwaterproofIP65
Add to favorites
Compare this product
Characteristics
- Type
- rocker
- Number of poles
- DPST
- Protection level
- waterproof, IP65, IP40, IP53
- Mounting
- panel mount
- Other characteristics
- AC, momentary
- Primary current
16 A
- Voltage
250 V
Description
Name：KCD2 DPST 4 pins momentary waterproof rocker switch
Product Type： KCD2-21M-AF2B-B-B-076
Max.Rating Current： 16(4)A 250V AC
Contact Resistance： ≤50mΩ
Insulation Resistance： ≥1000MΩ
Dielectric Strength： 1500V AC ,1min
Electronic Life： 10,000 cycles
Mechanical Life： 50,000 cycles
Operating Temperature：T55,T85,T125
Protection Degree： IP53
Certificate： CE、UL、CB、ENEC、ROHS
