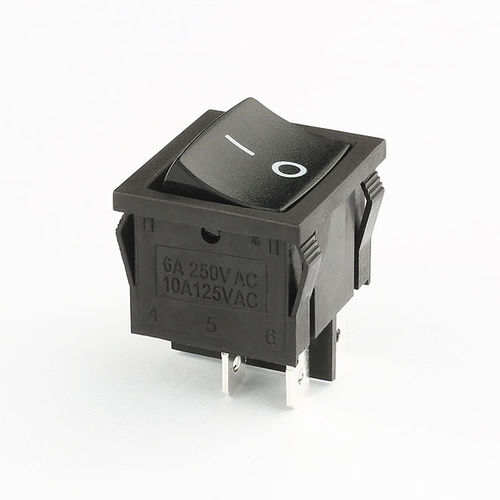

Rocker switch KCD2-21M-AF2B-B-B-076DPSTIP40CQC
Add to favorites
Compare this product
Characteristics
- Type
- rocker
- Number of poles
- DPST
- Protection level
- IP40
- Norms
- CQC
- Mounting
- panel mount
- Other characteristics
- AC
- Primary current
6 A
- Voltage
250 V
Description
Name：KCD5 Black Engine Start Buttons Electronic t85/55 t125/55 Rocker Switch
Product Type： KCD2-21M-AF2B-B-B-076
Max.Rating Current： 6A 250V AC
Contact Resistance： ≤50mΩ
Insulation Resistance： ≥1000MΩ
Dielectric Strength： 1500V AC ,1min
Electronic Life： 10,000 cycles
Mechanical Life： 50,000 cycles
Operating Temperature：T55
Protection Degree： IP40
Certificate： CE, CQC, UL
