- Rocker switch
- Shanghai Yongxing Electronic Switch Co.,Ltd

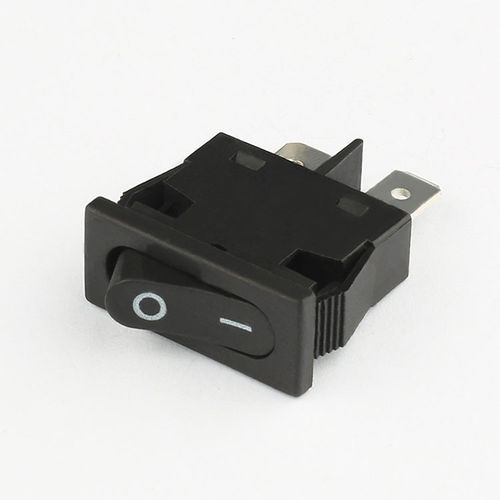

Rocker switch KCD7 seriessingle-poleIP40CQC
Add to favorites
Compare this product
Characteristics
- Type
- rocker
- Number of poles
- single-pole
- Protection level
- IP40
- Norms
- CQC
- Mounting
- panel mount
- Other characteristics
- AC
- Primary current
6 A
- Voltage
250 V
Description
Name：KCD7 110 Volt Paddle Thermal Adjustable Australian Code Rocker Switch
Product Type： KCD7-11-CF1B-B-B-01
Max.Rating Current： 6A 250V AC
Contact Resistance： ≤50mΩ
Insulation Resistance： ≥1000MΩ
Dielectric Strength： 1500V AC ,1min
Electronic Life： 10,000 cycles
Mechanical Life： 50,000 cycles
Operating Temperature：T55
Protection Degree： IP40
Certificate： CE、CQC
