Rocker switch KCD8 seriessingle-poleIP40CQC
Add to favorites
Compare this product
Characteristics
- Type
- rocker
- Number of poles
- single-pole
- Protection level
- IP40
- Norms
- CQC
- Mounting
- panel mount
- Other characteristics
- illuminated, AC, non-illuminated, round
- Primary current
6 A
- Voltage
250 V
Description

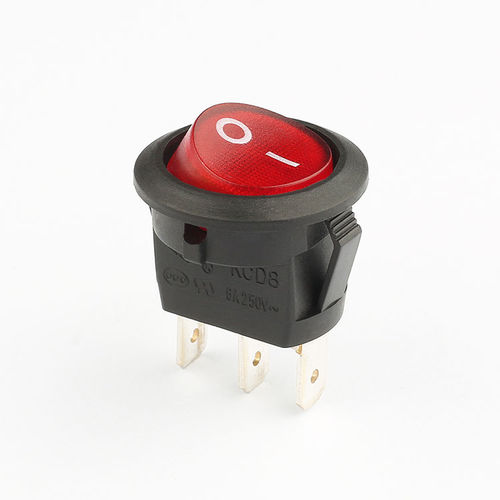

Name：KCD8 3 pins red round on off rocker switch
Product Type： KCD8
Max.Rating Current： 6A 250V AC
Contact Resistance： ≤50MΩ
Insulation Resistance： ≥1,000MΩ
Dielectric Strength： 1,500VAC 1min
Electronic Life： 10,000 cycles
Mechanical Life： 50,000 cycles
Operating Temperature：T55,T85,T105
Protection Degree： IP40
Certificate： UL、CE、CQC、CB、ENEC、ROHS
