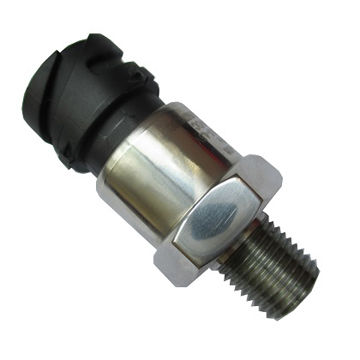

Relative pressure transmitter PST-006piezoresistive4-20 mAthreaded
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- piezoresistive
- Output
- 4-20 mA
- Mounting
- threaded
- Process connection
- NPT 1/4, NPT 1/8
- Fluid
- for liquids
- Material
- stainless steel
- Other characteristics
- two-wire
- Pressure range
Min.: 0 bar
(0 psi)Max.: 350 bar
(5,076.32 psi)- Precision
0.5 %
- Long-term stability
Min.: 0.02 %
Max.: 0.05 %
- Process temperature
Min.: -40 °C
(-40 °F)Max.: 125 °C
(257 °F)
Description
1. Description
PST-006 pressure transmitter uses the world advanced level silicone piezo-resistance and electric ceramic core measurement technology. PST-006 series products have the stainless steel housing, simple and pretty appearance, with the characteristics of anti-overloading, shock resistance, excellent linearity and permanent stability, wide temperature compensation range, easy installation, vibration resistance, 10,000,000 times cycle fatigue life. PST-006 series can be widely used for pressure measurement of automobile industrial control system, hydraulic pressure and vapour pressure monitoring of other industries.
2. Products feature and applications
Feature：
a. Excellent permanent stability
b. wide temperature compensation range
c. low power consumption
d. preferable repeatability and hysteresis
e. customization
