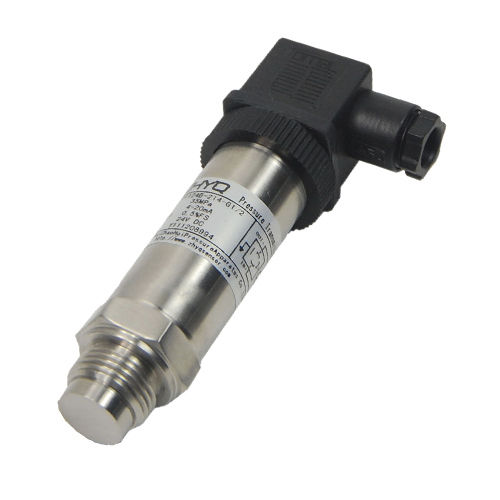

Relative pressure transmitter PT124B-214
membraneanalog2-wire

Relative pressure transmitter - PT124B-214 - Shanghai Zhaohui Pressure Apparatus Co.,Ltd.(ZHYQ) - membrane / analog / 2-wire
Relative pressure transmitter - PT124B-214 - Shanghai Zhaohui Pressure Apparatus Co.,Ltd.(ZHYQ) - membrane / analog / 2-wire
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Technology
membrane
Output
analog, 2-wire
Mounting
flush diaphragm
Process connection
NPT 1/2, G 1/2, G 1/4
Material
stainless steel, aluminum
Protection level
corrosion-resistant
Applications
for the food industry, for hydraulic applications, for pneumatic applications
Other characteristics
compact
Pressure range

Min.: -1 bar
(-14.5 psi)

Max.: 800 bar
(11,603.02 psi)

Precision

0.25 %, 0.5 %

Process temperature

Min.: -20 °C
(-4 °F)

Max.: 80 °C
(176 °F)

Description

PT124B-214 Series flush diaphragm pressure transmitter, it adopts firm material with special treatment, it hardly to damage by the tiny particles in the measurement medium. This product design with compact construct, shock-resistant, it solves the problems during the measurement that the pressure port is easily blocked, it can be interchangeable with the similar world standard products. Feature Various output signal for option Flush diaphragm with DIN11851 connector Excellent corrosion-proof capability Excellent corrosion-proof capability & Installation at any place Compact dimension, high quality Application Mechanical engineering Hydraulics/Pneumatics General industrial applicastions Food&Beverage
